The illusory promise of the Aligned Rank Transform
A systematic study of rank transformations
Theophanis Tsandilas
Géry Casiez
Under Review
This paper is under review on the experimental track of the Journal of Visualization and Interaction. See the reviewing process.
1 Introduction
In Human-Computer Interaction (HCI) and various fields within the behavioral sciences, researchers often gather data through user studies. Such data are typically messy, have small sample sizes, and may violate common statistical assumptions, such as the normality assumption. To address these challenges, researchers commonly employ nonparametric tests, which require fewer assumptions about the data. However, while nonparametric tests for simple one-factorial designs are well-established, researchers face challenges in selecting appropriate methods when dealing with multifactorial designs that require testing for both main effects and interactions. The Aligned Rank Transform or ART (Higgins, Blair, and Tashtoush 1990; Salter and Fawcett 1993; Wobbrock et al. 2011) addresses this problem by bridging the gap between nonparametric tests and ANOVAs. Its popularity in HCI research has surged, facilitated in part by the ARTool toolkit (Wobbrock et al. 2011; Kay et al. 2021), which simplifies the use of the method.
Early Monte Carlo experiments in the 1990s (Salter and Fawcett 1993; Mansouri and Chang 1995) and more recent studies (Elkin et al. 2021) suggested that ART is a robust alternative to ANOVA when normality assumptions are violated. These results have contributed to ART’s reputation as a well-established method. However, other research (Lüpsen 2017; Lüpsen 2018) raised concerns about the robustness of the method, demonstrating that ART fails to control the Type I error rate in many scenarios, such as when data are ordinal or are drawn from skewed distributions. Unfortunately, these warnings have not received sufficient attention, and many authors still rely on Wobbrock et al.’s (2011) assertion that “The ART is for use in circumstances similar to the parametric ANOVA, except that the response variable may be continuous or ordinal, and is not required to be normally distributed.”
Our goal is to clarify the severity of these issues and understand the potential risks of the method. We present the outcomes of a series of Monte Carlo experiments, following a distinctive simulation methodology grounded in latent variable modeling. This approach enables us to simulate effects consistently across a broad spectrum of distributions, both discrete and continuous, and allows us to address scaling issues in interpreting interactions. To ensure the clarity of our findings and facilitate their reproducibility, we divide the experimental process into multiple smaller experiments, where each experiment focuses on a distinct variable (e.g., sample size, experimental design, variance ratio) or measure (Type I error rate, power, precision of effect size estimates).
Our findings corroborate Lüpsen’s alarming conclusions. We provide overwhelming evidence that ART confounds effects and raises Type I error rates at very high levels across a diverse array of non-normal distributions, including skewed, binomial, and ordinal distributions, as well as distributions with unequal variances. These issues persist for both main and interaction effects. Our results further show that simpler rank transformation methods outperform ART, while parametric ANOVA generally poses fewer risks than ART when distributions deviate from normal. Given these new insights, we conclude that ART is not a viable analysis method and advocate for its abandonment. We provide recommendations for alternative analysis methods, while we also raise warnings about the interpretation of interaction effects.
Illustrative example
We will begin with an illustrative example to demonstrate how the aligned rank transform can lead to an increase in false positives and a significant inflation of observed effects. This example will also serve as a brief introduction to the key concepts and methods employed throughout the paper.
Suppose an HCI researcher conducts an experiment to compare the performance of three user interface techniques (A, B, and C) that help users complete image editing tasks of four different difficulty levels. The experiment follows a fully balanced \(4 \times 3\) repeated-measures factorial design, where each participant (N = 12) performs 12 tasks in a unique order. The researcher measures the time that it takes participants to complete each task. The following table presents the experimental results:
Example dataset: Time (in minutes) spent by 12 participants for four difficulty levels and three user interface techniques. Scroll down to see the full results.
| Participant | Difficulty | Technique | Time |
|---|---|---|---|
| P01 | Level1 | A | 0.20 |
| P01 | Level1 | B | 0.17 |
| P01 | Level1 | C | 0.14 |
| P01 | Level2 | A | 0.45 |
| P01 | Level2 | B | 0.50 |
| P01 | Level2 | C | 0.27 |
| P01 | Level3 | A | 0.64 |
| P01 | Level3 | B | 0.63 |
| P01 | Level3 | C | 0.83 |
| P01 | Level4 | A | 0.75 |
| P01 | Level4 | B | 1.35 |
| P01 | Level4 | C | 1.25 |
| P02 | Level1 | A | 0.71 |
| P02 | Level1 | B | 0.47 |
| P02 | Level1 | C | 0.59 |
| P02 | Level2 | A | 1.82 |
| P02 | Level2 | B | 0.87 |
| P02 | Level2 | C | 1.29 |
| P02 | Level3 | A | 1.35 |
| P02 | Level3 | B | 4.44 |
| P02 | Level3 | C | 1.92 |
| P02 | Level4 | A | 3.22 |
| P02 | Level4 | B | 9.62 |
| P02 | Level4 | C | 5.33 |
| P03 | Level1 | A | 0.55 |
| P03 | Level1 | B | 0.21 |
| P03 | Level1 | C | 0.43 |
| P03 | Level2 | A | 0.88 |
| P03 | Level2 | B | 1.07 |
| P03 | Level2 | C | 1.36 |
| P03 | Level3 | A | 0.85 |
| P03 | Level3 | B | 0.66 |
| P03 | Level3 | C | 2.19 |
| P03 | Level4 | A | 3.21 |
| P03 | Level4 | B | 3.44 |
| P03 | Level4 | C | 2.07 |
| P04 | Level1 | A | 0.54 |
| P04 | Level1 | B | 0.41 |
| P04 | Level1 | C | 0.52 |
| P04 | Level2 | A | 1.02 |
| P04 | Level2 | B | 0.61 |
| P04 | Level2 | C | 0.80 |
| P04 | Level3 | A | 2.19 |
| P04 | Level3 | B | 1.75 |
| P04 | Level3 | C | 2.36 |
| P04 | Level4 | A | 9.82 |
| P04 | Level4 | B | 4.32 |
| P04 | Level4 | C | 3.58 |
| P05 | Level1 | A | 0.79 |
| P05 | Level1 | B | 0.78 |
| P05 | Level1 | C | 0.45 |
| P05 | Level2 | A | 2.41 |
| P05 | Level2 | B | 0.99 |
| P05 | Level2 | C | 1.80 |
| P05 | Level3 | A | 2.70 |
| P05 | Level3 | B | 2.85 |
| P05 | Level3 | C | 2.25 |
| P05 | Level4 | A | 3.13 |
| P05 | Level4 | B | 5.38 |
| P05 | Level4 | C | 6.24 |
| P06 | Level1 | A | 0.64 |
| P06 | Level1 | B | 0.23 |
| P06 | Level1 | C | 0.34 |
| P06 | Level2 | A | 0.90 |
| P06 | Level2 | B | 0.93 |
| P06 | Level2 | C | 0.45 |
| P06 | Level3 | A | 1.32 |
| P06 | Level3 | B | 1.34 |
| P06 | Level3 | C | 1.80 |
| P06 | Level4 | A | 5.47 |
| P06 | Level4 | B | 4.64 |
| P06 | Level4 | C | 2.50 |
| P07 | Level1 | A | 0.17 |
| P07 | Level1 | B | 0.17 |
| P07 | Level1 | C | 0.16 |
| P07 | Level2 | A | 0.24 |
| P07 | Level2 | B | 0.30 |
| P07 | Level2 | C | 0.27 |
| P07 | Level3 | A | 0.72 |
| P07 | Level3 | B | 1.30 |
| P07 | Level3 | C | 0.36 |
| P07 | Level4 | A | 1.06 |
| P07 | Level4 | B | 1.01 |
| P07 | Level4 | C | 0.55 |
| P08 | Level1 | A | 0.36 |
| P08 | Level1 | B | 0.38 |
| P08 | Level1 | C | 0.22 |
| P08 | Level2 | A | 0.69 |
| P08 | Level2 | B | 1.02 |
| P08 | Level2 | C | 0.89 |
| P08 | Level3 | A | 0.99 |
| P08 | Level3 | B | 1.75 |
| P08 | Level3 | C | 1.15 |
| P08 | Level4 | A | 3.87 |
| P08 | Level4 | B | 4.63 |
| P08 | Level4 | C | 4.89 |
| P09 | Level1 | A | 0.33 |
| P09 | Level1 | B | 0.24 |
| P09 | Level1 | C | 0.21 |
| P09 | Level2 | A | 0.39 |
| P09 | Level2 | B | 1.01 |
| P09 | Level2 | C | 0.42 |
| P09 | Level3 | A | 0.79 |
| P09 | Level3 | B | 1.17 |
| P09 | Level3 | C | 1.86 |
| P09 | Level4 | A | 3.47 |
| P09 | Level4 | B | 2.86 |
| P09 | Level4 | C | 1.21 |
| P10 | Level1 | A | 0.18 |
| P10 | Level1 | B | 0.24 |
| P10 | Level1 | C | 0.59 |
| P10 | Level2 | A | 0.27 |
| P10 | Level2 | B | 0.77 |
| P10 | Level2 | C | 0.61 |
| P10 | Level3 | A | 1.57 |
| P10 | Level3 | B | 0.90 |
| P10 | Level3 | C | 1.43 |
| P10 | Level4 | A | 4.73 |
| P10 | Level4 | B | 3.71 |
| P10 | Level4 | C | 1.13 |
| P11 | Level1 | A | 0.15 |
| P11 | Level1 | B | 0.57 |
| P11 | Level1 | C | 0.38 |
| P11 | Level2 | A | 1.43 |
| P11 | Level2 | B | 0.39 |
| P11 | Level2 | C | 0.79 |
| P11 | Level3 | A | 1.90 |
| P11 | Level3 | B | 2.14 |
| P11 | Level3 | C | 0.89 |
| P11 | Level4 | A | 3.92 |
| P11 | Level4 | B | 7.19 |
| P11 | Level4 | C | 3.62 |
| P12 | Level1 | A | 0.23 |
| P12 | Level1 | B | 0.41 |
| P12 | Level1 | C | 0.56 |
| P12 | Level2 | A | 1.09 |
| P12 | Level2 | B | 1.06 |
| P12 | Level2 | C | 0.98 |
| P12 | Level3 | A | 1.70 |
| P12 | Level3 | B | 1.39 |
| P12 | Level3 | C | 1.42 |
| P12 | Level4 | A | 3.09 |
| P12 | Level4 | B | 6.24 |
| P12 | Level4 | C | 1.14 |
The experiment is hypothetical but has similarities with real-world experiments, e.g., see the experiments of Fruchard et al. (2023). Time performances have been randomly sampled from a population in which: (1) Difficulty has a large main effect; (2) Technique has no main effect; and (3) there is no interaction effect between the two factors. To generate time values, we drew samples from a log-normal distribution. The log-normal distribution is often a good fit for real-world measurements that are bounded by zero and have low means but large variance (Limpert, Stahel, and Abbt 2001). Task-completion times are good examples of such measurements (Sauro and Lewis 2010).
Figure 1 presents two boxplots that visually summarize the main effects observed through the experiment. We plot medians to account for the fact that distributions are skewed. We observe that differences in the overall time performance of the three techniques are not visually clear, although the overall median time is somewhat higher for Technique B. In contrast, time performance clearly deteriorates as task difficulty increases. We also observe that for the most difficult tasks (Level 4), the median time for Technique C is lower than the median time for Techniques A and B, so we may suspect that Difficulty interacts with Technique. However, since the spread of observed values is extremely large and the number of data points is small, such differences could result from random noise.
We opt for a multiverse analysis (Dragicevic et al. 2019) to analyze the data, where we conduct a repeated-measures ANOVA with four different data-transformation methods:
Log transformation (LOG). Data are transformed with the logarithmic function. For our data, this is the most appropriate method as we drew samples from a log-normal distribution.
Aligned rank transformation (ART). Data are transformed and analyzed with the ARTool (Wobbrock et al. 2011; Elkin et al. 2021).
Pure rank transformation (RNK). Data are transformed with the original rank transformation (Conover and Iman 1981), which does not perform any data alignment.
Inverse normal transformation (INT). The data are transformed by using their normal scores. This rank-based method is simple to implement and has been commonly used in some disciplines. However, it has also received criticism (Beasley, Erickson, and Allison 2009).
For comparison, we also report the results of the regular parametric ANOVA with no transformation (PAR). For each ANOVA analysis, we use a linear mixed-effects model, treating the participant identifier as a random effect. To simplify our analysis and like Elkin et al. (2021), we consider random intercepts but no random slopes. For example, we use the following R code to create the model for the log-transformed response:
m.log <- lmer(log(Time) ~ Difficulty*Technique + (1|Participant), data = df)The table below presents the p-values for the main effects of the two factors and their interaction:
| PAR | LOG | ART | RNK | INT | |
|---|---|---|---|---|---|
| Difficulty | \(1.8 \times 10^{-26}\) | \(8.1 \times 10^{-47}\) | \(9.0 \times 10^{-43}\) | \(4.3 \times 10^{-46}\) | \(4.4 \times 10^{-44}\) |
| Technique | \(.10\) | \(.18\) | \(.00061\) | \(.38\) | \(.17\) |
| Difficulty \(\times\) Technique | \(.056\) | \(.10\) | \(.0017\) | \(.24\) | \(.23\) |
The disparity in findings between ART and the three alternative transformation methods is striking. ART suggests that all three effects are statistically significant. What adds to the intrigue is the fact that ART’s p-values for Technique and its interaction with Difficulty are orders of magnitude lower than the p-values obtained from all other methods. We will observe similar discrepancies if we conduct contrast tests with the ART procedure (Elkin et al. 2021), though we leave this as an exercise for the reader.
We also examine effect size measures, which are commonly reported in scientific papers. The table below presents results for partial \(\eta^2\), which describes the ratio of variance explained by a variable or an interaction:
| PAR | LOG | ART | RNK | INT | |
|---|---|---|---|---|---|
| Difficulty | \(.64\ [.55, 1.0]\) | \(.83\ [.79, 1.0]\) | \(.80\ [.76, 1.0]\) | \(.83\ [.79, 1.0]\) | \(.81\ [.77, 1.0]\) |
| Technique | \(.04\ [.00, 1.0]\) | \(.03\ [.00, 1.0]\) | \(.11\ [.03, 1.0]\) | \(.02\ [.00, 1.0]\) | \(.03\ [.00, 1.0]\) |
| Difficulty \(\times\) Technique | \(.10\ [.00, 1.0]\) | \(.08\ [.00, 1.0]\) | \(.16\ [.04, 1.0]\) | \(.06\ [.00, 1.0]\) | \(.06\ [.00, 1.0]\) |
We observe that ART exaggerates both the effect of Technique and its interaction with Difficulty.
Overview
The above example does not capture a rare phenomenon. We will show that ART’s error inflation is systematic for a range of distributions that deviate from normality, both continuous and discrete. We will explain how the problem emerges. We will also see that ART often performs worse than simpler methods that ART is widely considered to repair or improve, such as the pure rank transformation or no transformation at all.
The paper is structured as follows. Section 2 introduces nonparametric tests and rank transformations, and explains how ART is constructed. It also provides a summary of previous experimental results regarding the robustness of ART and other related rank-based procedures, along with a survey of recent studies using ART. Section 3 investigates issues regarding effect interpretation and introduce our distribution simulation approach. Section 4 outlines our experimental methodology, while Section 5 presents our findings. Section 6 revisits results of previous studies employing ART and illustrates how its application can lead to erroneous conclusions. Section 7 offers recommendations for researchers. Finally, Section 8 concludes the paper.
In addition to the main sections of the paper, we provide an appendix with results from additional Monte Carlo experiments.
2 Background
In this section, we provide background on the history, scope, construction, and use of rank transformation methods, with a particular focus on ART. Additionally, we summarize the results of previous evaluation studies and position our own work within this context.
Nonparametric statistical tests
A common assumption of ANOVAs and linear regression is that the distribution of residuals is normal. More technically, the normality assumption concerns the sampling distribution of the mean. Therefore, when sample sizes are sufficiently large, these methods are robust to departures from the normality assumption because the sampling distribution of the mean is asymptotically normal, regardless of the shape of the population distributions (Central Limit Theorem). However, their accuracy drops if samples are relatively small and populations markedly deviate from normal.
The goal of nonparametric procedures is to address this problem by making fewer or no assumptions about the underlying distributions. The original idea of replacing the data values by their ranks belongs to Spearman (1904). The key advantage of ranks is that they preserve the monotonic relationship of values while also allowing the derivation of an exact probability distribution. This probability distribution can then be used for statistical inference, such as calculating a p-value. The idea of using ranks was adopted by other researchers, leading to the development of various nonparametric tests commonly used today. Representative examples include the Mann-Whitney U test (Mann and Whitney 1947) and the Kruskal–Wallis test (Kruskal and Wallis 1952) for independent samples, and the Wilcoxon sign-rank test (Wilcoxon 1945) and the Friedman test (Friedman 1940) for paired samples and repeated measures.
Rank transformations
Unfortunately, the scope of nonparametric tests is limited, as they only support simple experimental designs with a single independent variable. Rank transformations aim to address this limitation by bridging the gap between nonparametric statistics and ANOVA.
The rank transform. Conover (2012) provides a comprehensive introduction to the simple rank transform, which consists of sorting the raw observations and replacing them by their ranks. In case of ties, tied observations are assigned fractional ranks equal to their average order position in the ascending sequence of values. For example, the two \(0.3\) instances of the \(Y\) responses in Figure 2 (a), which are the lowest values in the dataset, receive a rank of \(1.5\) (see \(rank(Y)\)), while the next value (a \(0.4\)) in the sequence receives a rank of \(3\).
Conover and Iman (1981) showed that for one-factor designs, using ANOVAs on these ranks produces tests that are asymptotically equivalent or good replacements of traditional nonparametric tests (see Section 3). However, a series of studies in the 80s raised caution flags on the use of the method, showing that it may confound main and interaction effects in two-factor and three-factor experimental designs. For an extensive review of these studies, we refer readers to Sawilowsky (1990).
The aligned rank transform. Given such negative results, many researchers turned to aligned (or adjusted) rank transformations. Sawilowsky (1990) discusses several variations of aligned rank-based transformations (ART) and tests, while Higgins, Blair, and Tashtoush (1990) detail the ART method that we evaluate in this paper for two-way designs. Wobbrock et al. (2011) generalize it to more than two factors, while 10 years later, Elkin et al. (2021) show how to apply it to multifactor contrast tests. Figure 2 explains the general method for a design with two factors, \(A\) and \(B\).
The key intuition behind the transform is that responses are ranked after aligning them, such that effects of interest are separated from other effects. This means that for each effect of interest, either main or interaction, we produce a separate ranking. This is clearly demonstrated through the example dataset in Figure 2 (a), where each aligned ranking (\(ART_A\), \(ART_B\), and \(ART_{AB}\)) is for testing a different effect (\(A\), \(B\), and \(A \times B\), respectively).
Notice that even for this very small dataset (\(n = 2\)), these three rankings are distinct from each other, as well as very different from the ranking of the simple rank transform. Interestingly, equal responses (the two \(0.3\) in our example dataset) may be assigned to very different ranks, while very different responses (such as \(0.3\) and \(3.0\) in our dataset) can be assigned to the same rank. Furthermore, differences between the two groups \(a_1\) and \(a_2\) within factor \(A\) are significantly exaggerated by ART (see \(ART_A\) ranks). We will later see that this behavior can lead to unstable results and conclusions, and is the source of the main problems of the method. For example, if we run a repeated-measures ANOVA on these ranks, we obtain a p-value \(= .044\) for the effect of \(A\). For comparison, if we run repeated-measures ANOVA on the ranks of simple rank transformation, we obtain a p-value \(= .46\), while if we use a log-transformation that is more appropriate for these data, we obtain a p-value \(= .85\).
Figure 2 (b-c) details the calculation of the transformation, where we highlight the following terms: (i) residuals (in yellow) that represent the unexplained error (due to individual differences in our example); (ii) main effects (in green and pink) estimated from the observed means of the individual levels of the two factors; and (iii) interaction effect estimates (in blue). Observe that the estimates of the two main effects are subtracted from the interaction term. The objective of this approach is to eliminate the influence of main effects when estimating interaction effects.
This is not the only alignment technique found in the research literature. Sawilowsky (1990) suggests that at least for balanced designs, interactions could be removed when aligning main effects, in the same way main effects are removed when aligning interactions. This approach is also taken by Leys and Schumann (2010), who derived a common ranking for both main effects after subtracting the interaction term. We do not test these alternative alignment methods in this paper since to the best of our knowledge, they are not commonly used.
The inverse normal transform. A third transformation method that we evaluate is the rank-based inverse normal transformation (INT). INT is more than 70 years old (Waerden 1952) and appears in several variations (Beasley, Erickson, and Allison 2009; Solomon and Sawilowsky 2009). Its general formulation is as follows:
\[ INT(Y) = \Phi^{-1}(\frac{rank(Y) - c}{N - 2c + 1}) \tag{1}\]
where \(N\) is the total number of observations and \(\Phi^{-1}\) is the standard normal quantile function, which transforms a uniform distribution of ranks into a normal distribution. Different authors have used a different parameter \(c\). In our experiments, we use the Rankit formulation (Bliss, Greenwood, and White 1956), where \(c = 0.5\), since past simulation studies (Solomon and Sawilowsky 2009) have shown that it is more accurate than alternative formulations. However, as Beasley, Erickson, and Allison (2009) report, the choice of \(c\) is of minor importance. For our experiments, we implement the INT method in R as follows:
INT <- function(x){
qnorm((rank(x) - 0.5)/length(x))
}Figure 2 (a) shows how this function transforms the responses for our example dataset.
Other non-parametric rank-based methods. There are other rank-based statistical tests that deal with interactions, the ANOVA-type statistic (ATS) (Brunner and Puri 2001) being the most representative one. Kaptein, Nass, and Markopoulos (2010) introduced this method to the HCI community, advocating its application in the analysis of Likert-type data as a viable alternative to parametric ANOVA. In addition to ATS, Lüpsen (2017; 2018; 2023) investigated several other multifactorial nonparametric methods. In particular, the author evaluated the hybrid ART+INT technique proposed by Mansouri and Chang (1995), which applies INT on the ranks of ART. He also tested multifactorial generalizations of the van der Waerden test (Waerden 1952) and the Kruskal-Wallis and Friedman tests (Kruskal and Wallis 1952; Friedman 1940). The former is based on INT, but instead of using F-tests on the transformed values as part of ANOVA, it computes \(\chi^2\) ratios over sums of squares. These two methods are not widely available. Their implementation in R can be downloaded from Lüpsen’s web page (Lüpsen 2021).
Experimental evaluations
Previous studies have assessed ART and related procedures through various Monte Carlo experiments, yielding conflicting results and conclusions.
Results in support of ART. The outcomes from numerous experiments conducted in the 80s and 90s suggested that ART was robust in testing interaction effects. Noteworthy instances include studies, such as those by Salter and Fawcett (1993), which compared the method to parametric ANOVA. The authors found that ART remains robust even in the presence of outliers or specific non-normal distributions, such as the logistic, exponential, and double exponential distributions. Their findings indicated only a marginal increase in error rates (ranging from 6.0% to 6.3% instead of the expected 5%) when applied to the exponential distribution. Furthermore, ART demonstrated superior statistical power compared to parametric ANOVA. Mansouri and Chang (1995) evaluated ART under a different set of non-normal distributions (normal, uniform, log-normal, exponential, double exponential, and Cauchy) in the presence of increasing main effects. Except for the Cauchy distribution, ART maintained Type I error rates close to nominal levels across all scenarios, irrespective of the magnitude of main effects. In contrast, the error rates of the rank transformation reached very high levels (up to \(100\%\)) as the magnitude of main effects increased, even under the normal distribution. ART only failed under the Cauchy distribution, which is well-known to be pathological.
More recently, Elkin et al. (2021) compared ART to parametric t-tests for testing multifactor contrasts under six distributions: normal, log-normal, exponential, double exponential, Cauchy, and Student’s t-distribution (\(\nu=3\)). Their results confirmed that ART keeps Type I error rates close to nominal levels across all distributions, except for the Cauchy distribution. In addition, they found that ART exhibits a higher power than the t-test. We emphasize, however, that the experimental methodology of Elkin et al. (2021) did not allow for detecting the influence of a factor’s main effect on the effect of a different factor or their interaction.
While most evaluation studies have focused on continuous distributions, Payton et al. (2006) have also studied how various transformations (rank, ART, log-transform, and squared-root transform) perform under the Poisson distribution, focusing again on interaction effects when main effects were present. The authors found that ART and parametric ANOVA (no transformation) performed best, keeping Type I error rates close to nominal levels. All other transformations inflated error rates.
Warnings. While the above results indicate that ART is a robust method, other studies have identified some serious issues. The second author of this paper has observed that, in certain cases, ART seems to detect spurious effects that alternative methods fail to identify (Casiez 2022). Such informal observations, conducted with both simulated and real datasets, motivated us to delve deeper into the existing literature.
Carletti and Claustriaux (2005) report that “aligned rank transform methods are more affected by unequal variances than analysis of variance especially when sample sizes are large.” Years later, Lüpsen (2018) conducted a series of Monte Carlo experiments, comparing a range of rank-based transformations, including the rank transformation, ART, INT, a combination of ART and INT (ART+INT), and ATS. His experiments focused on a \(2 \times 4\) balanced between-subjects design and a \(4 \times 5\) severely unbalanced design and tested normal, uniform, discrete uniform (integer responses from 1 to 5), log-normal, and exponential distributions, with equal or unequal variances. Furthermore, they tested both interaction and main effects when the magnitude of other effects increased. The results revealed that ART inflates error rates beyond acceptable levels in several configurations: right-skewed distributions (log-normal and exponential), discrete responses, unequal variances, and unbalanced designs. Lüpsen (2018) also found that using INT in combination with ART (ART+INT) is preferable to the pure ART technique. However, as the method still severely inflated error rates in many settings, Lüpsen (2018) concluded that both ART and ART+INT are “not recommendable.”

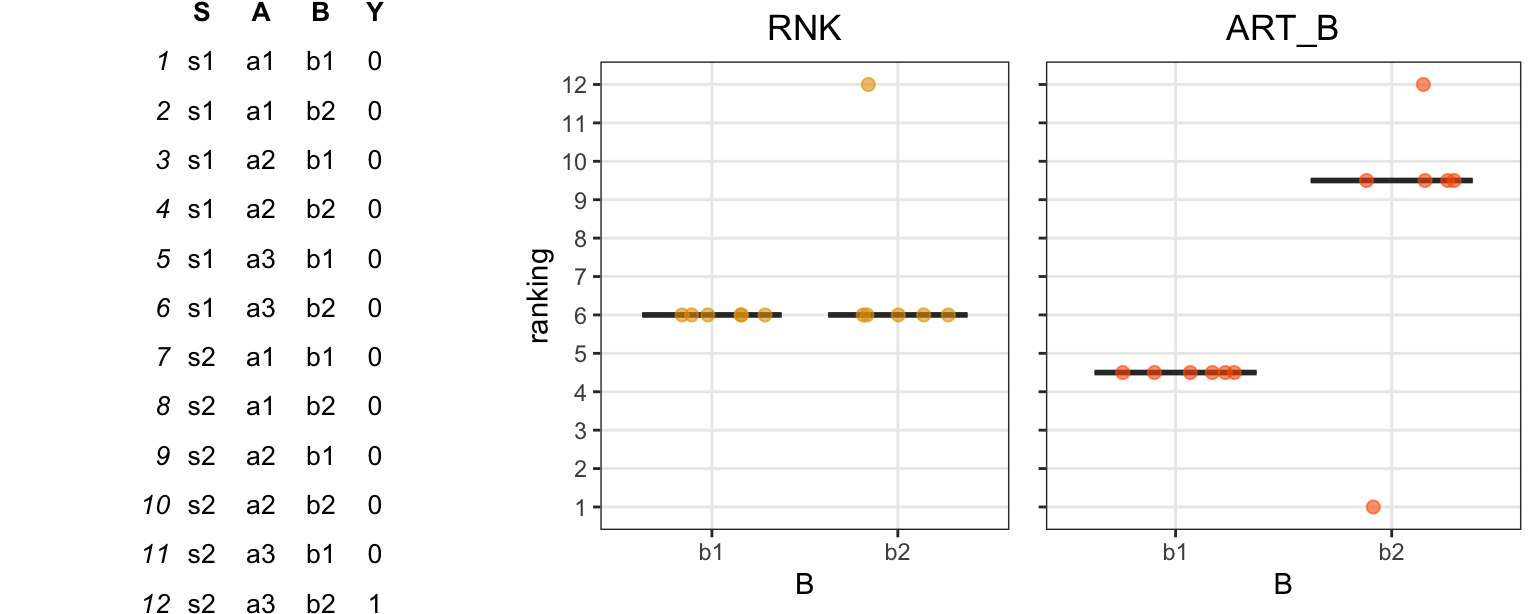

Another interesting finding of Lüpsen (2018) was that the simple rank transformation “appeared not as bad as it is often described” (Lüpsen 2018), outperforming ART in certain configurations, such as discrete and skewed distributions, or unequal variances. These results are in full contradiction with the findings of Mansouri and Chang (1995).
The same author conducted an additional series of experiments (Lüpsen 2017), focusing on two discrete distributions (uniform and exponential) with a varying number of discrete levels: 2, 4, and 7 levels with integer values for the uniform distribution, and 5, 10, and 18 levels with integer values for the exponential distribution. Again, the Type I error rates of both ART and ART+INT reached very high levels, but error rates were especially pronounced when the number of discrete levels became small and the sample size increased. The author provides a detailed analysis of why ART fails in these cases, summarized as follows:
“There is an explanation for the increase of the type I error rate when the number of distinct values gets smaller or the sample size larger: due to the subtraction of the other effects — a linear combination of the means — from the observed values even tiny differences between the means lead to large differences in the ranking” (Lüpsen 2017).
Given these results, the author’s conclusion was the following:
“the ART as well as the ART+INT cannot be applied to Likert and similar metric or ordinal scaled variables, e.g. frequencies like the number of children in a family or the number of goals, or ordinal scales with ranges from 1 to 5” (Lüpsen 2017).
Results on other rank-based methods. We are also interested in understanding how ART compares with INT, which is frequently used in some research domains, such as genetics research (Beasley, Erickson, and Allison 2009). Beasley, Erickson, and Allison (2009) conducted an extensive evaluation of the method and reached the conclusion that “INTs do not necessarily maintain proper control over Type 1 error rates relative to the use of untransformed data unless they are coupled with permutation testing.” Lüpsen (2018) included INT in his evaluation and found that in most cases, it maintained better control of Type I error rates compared to ART and the pure rank transformation, while also presenting a higher statistical power. However, he also identified several cases where INT failed to sufficiently control for Type I errors, such as design configurations with unequal variances in unbalanced designs or skewed distributions, and when testing interactions in the presence of non-null main effects.
In addition to INT, Lüpsen (2018) evaluated the ATS method but found it to suffer from low power while presenting similar challenges as the rank transformation with regard to Type I error rates. Amongst all evaluated methods, the author identified the generalized van der Waerden test as the method that provided the best overall control of Type I error rates. More recently, Lüpsen (2023) conducted a new series of experiments testing rank-based nonparametric methods on split-plot designs with two factors. While the author reported on various tradeoffs of the methods, he concluded that overall, the generalized van der Waerden test and the generalized Kruskal-Wallis and Friedman tests were the best performing methods.
The use of ART in experimental research

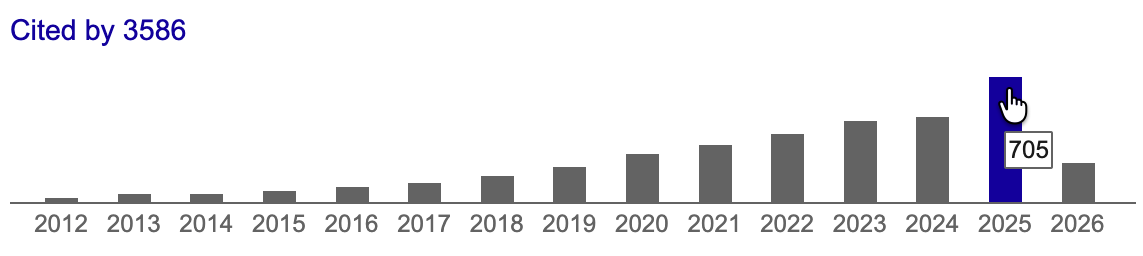

To get a sense of how frequently ART is used in experimental research, we examined the citations of ARTool (Wobbrock et al. 2011) indexed by Google Scholar. As shown in Figure 3), the rate of citations to the original CHI 2011 paper introducing the method to the HCI community is steadily increasing, with over 400 citations in 2023 alone.

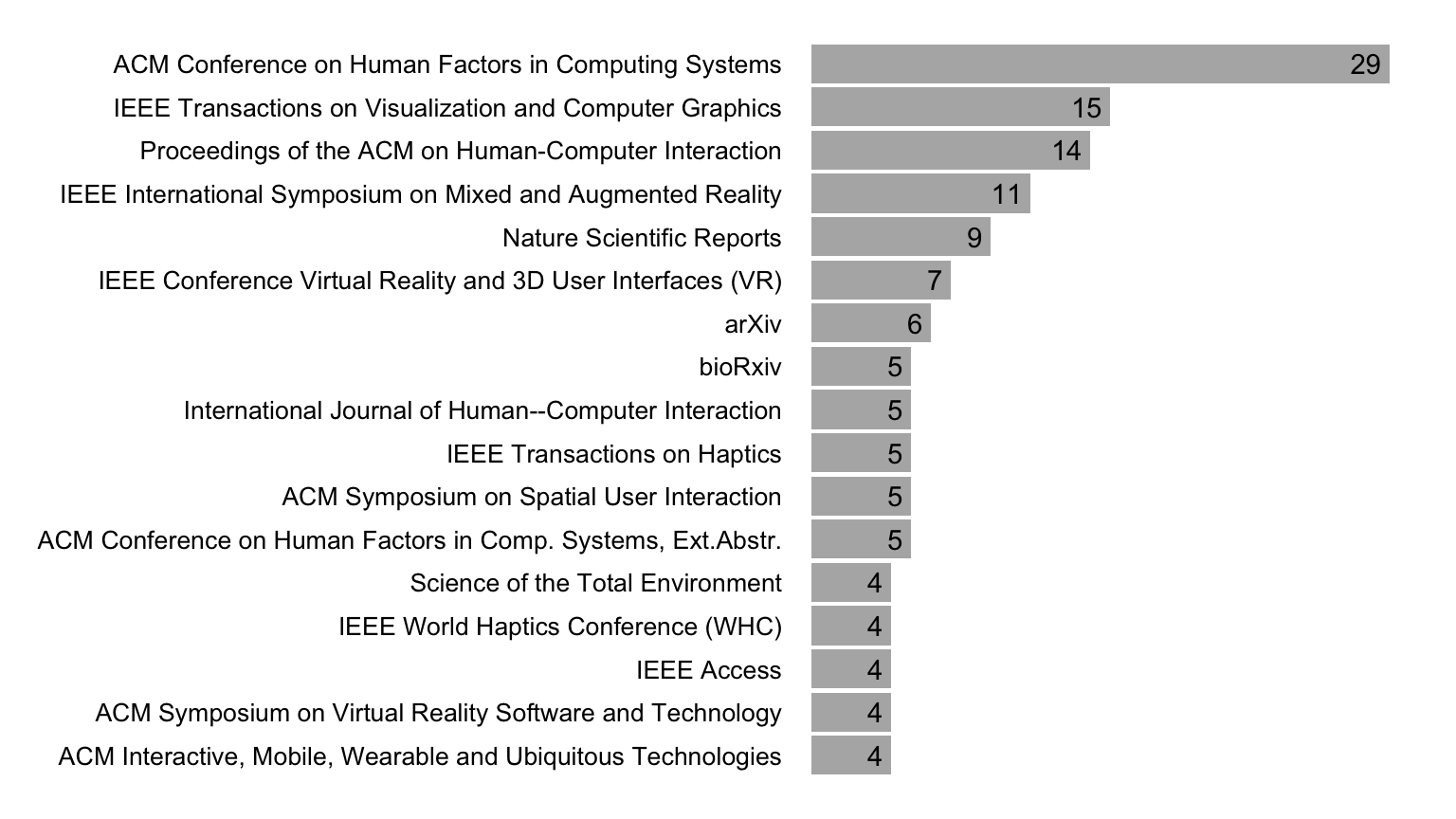

Figure 4 presents the most frequently citing venues for 2023. We observe that the HCI, Augmented Reality (AR), and Virtual Reality (VR) venues dominate these citations. However, we found that ARTool is used in other scientific disciplines. For example, among the papers published in 2023, we counted nine Nature Scientific Reports and a total of 25 articles appearing in journals with the words “neuro” or “brain” in their title, including the Journal of Neuropsychology (three citations), the Journal of Neuroscience (two citations), the Journal of Cognitive Neuroscience (two citations), Neuropsychologia (two citations), Nature Neuroscience, Neuropharmacology, Brain, and NeuroImage.
To gain insights into the prevalent experimental designs using ART, we examined a subset of citing papers comprising the 39 most recent English publications as of November 2023. Among these, 25 report using a within-participants design, three papers report using a between-participants design, while 11 papers report using a mixed design that involved both between- and within-participants factors. The number of factors ranges from one to five, with two factors representing approximately 64% of the experimental designs. Participant counts in these studies vary between 12 and 468, with a median of 24 participants. Within-cell sample sizes (n) range from 8 to 48, with a median of 20.
Furthermore, we explored the types of data analyzed using ART. Among the 39 papers, 21 use ART for analyzing ordinal data, often in conjunction with other data types. Ordinal data include responses to Likert scales or other scales of subjective assessment, such as the NASA Task Load Index (NASA TXL) (Hart and Staveland 1988). Furthermore, several authors apply ART to individual ordinal items, including Likert items with five levels (two papers), seven levels (seven papers), and 11 levels (three papers). Other types of data for which the method is used include task-completion or response times, counts, and measures of accuracy, such as target hit rates or recall scores. A common rationale for employing ART for such measures is the detection of departures from normality assumptions, often identified through tests like the Shapiro-Wilk test. Interestingly, several authors use ART only for ratio data, opting for nonparametric tests such as the Friedman test when analyzing ordinal data.
Out of the 39 papers examined, 38 identify at least one statistically significant main effect using ART. Additionally, 30 papers conduct tests for interactions, with 24 of them reporting at least one statistically significant interaction effect. Only five papers have publicly available data. We revisit the results of three of these papers in Section 6.
Positioning
We observe that ART is frequently used for the analysis of experimental results. Interestingly, the cautions raised by Lüpsen (2017; 2018) have been widely overlooked, and ART is commonly applied to datasets, including Likert data with five or seven levels, where the method has been identified as particularly problematic. Given the contradictory findings in the existing literature, researchers grapple with significant dilemmas regarding which past recommendations to rely on.
Our goal is to verify Lüpsen’s findings by employing an alternative set of experimental configurations and a distinctly different methodology. In particular, we adopt a latent variable modeling approach that establishes a unified framework for data generation across all distributions. This approach allows us to demonstrate the shortcomings of rank-based approaches in effectively addressing interactions through the lens of removable interactions (Loftus 1978). Moreover, it facilitates the assessment of the methods through more suitable generation procedures for ordinal data, as suggested by Liddell and Kruschke (2018).
With a focus on clarity, we chose to exclusively examine the three rank-based transformations presented earlier: the pure rank transformation (RNK), ART, and INT. While we do not elaborate on the performance of ATS in the main paper, additional experimental results are available in the appendix. These findings indicate that its performance is comparable to the rank transformation but seems to be inferior to the simpler and more versatile INT. The appendix features additional results regarding the performance of the generalized van der Waerden test, as well as the generalized Kruskal-Wallis and Friedman tests. Our findings show that, at least in balanced designs, these methods suffer from low power issues without demonstrating any clear benefits compared to INT.
Finally, we chose to limit our investigation to balanced experimental designs. The rationale behind this decision is that we have not encountered any prior claims about ART’s suitability for unbalanced data, and the ARTool (Kay et al. 2021) issues a warning in such situations. However, the appendix presents additional results on experimental designs with missing data, which confirm that in such situations, ART’s accuracy may deteriorate further.
3 Interpreting effects
The ART procedure was proposed as an alternative to the rank transformation (Conover and Iman 1981) for testing interactions. As Higgins, Blair, and Tashtoush (1990) explained, the rank transformation is non-linear and, as a result, it changes the structure of interactions. Therefore, “interaction may exist in the transformed data but not in the original data, or vice versa” (Higgins, Blair, and Tashtoush 1990). Figure 5 demonstrates the problem. In this example, the data have been sampled from perfectly normal distributions with equal variances. We observe that while no interaction effect appears in the original data (lines are parallel), the rank transformation causes the trends to slightly change. In particular, differences are more pronounced for the middle points of the three-level factor (“medium difficulty”). This problem emerges when the main effect is strong on both factors.
ART aims to correct this problem. However, non-linear transformations come into place in various ways in experimental designs (Loftus 1978; Wagenmakers et al. 2012). They can deform distributions, making the interpretation of observed effects especially challenging. Before presenting our experimental method, we discuss these problems and explain how our approach takes them into consideration.
What is the null hypothesis of interest?
To compare different statistical methods, we first need to assess whether these methods are comparable. If two methods are not designed to test the same null hypothesis, then making direct comparisons between them could be misleading. Let us elucidate this problem.
ANOVA and nonparametric tests. The traditional ANOVA is used to test differences between two or more means. However, nonparametric tests often target other population parameters. For example, the Wilcoxon sign-rank test is commonly described as a test of medians for paired samples (McDonald 2014) and is used when population means are not of interest, e.g., when population distributions are skewed. The Mann-Whitney U and the Kruskal–Wallis tests are used, instead, to assess whether two or more independent samples come from the same population, or more technically, whether the mean ranks of the groups are the same. They can be only interpreted as tests of medians under the strict assumption that the population distributions of all groups have identical shapes and scales (George W. Divine and Juarez-Colunga 2018).
Rank transformations. Interpreting the null hypothesis of interest of a rank transformation is more challenging. Conover and Iman (1981) show that the simple rank transformation procedure RNK is equivalent to the Mann-Whitney U and Kruskal–Wallis tests for independent samples. For paired samples, however, it results in a new test, which is different from the Wilcoxon sign-rank test and the Friedman test. Defining the null hypothesis of interest of ART is even more challenging because of the hybrid nature of the method. In particular, while ART is a rank-based transformation procedure, it aligns data with respect to means, where alignment is performed independently for each group.
Dealing with the interpretation of main effects. To partly avoid these interpretation issues, we focus on effects that apply monotonic transformations to population distributions. This also ensures a monotonic relationship between different measures of central tendency such as medians and means (with the exception of the Cauchy distribution, where the mean is undefined). In other words, if a treatment increases the population mean, it will also increase the population median. We present an example in Figure 6. The figure shows two population distributions corresponding to the two intermediate levels of difficulty of our illustrative example (see Figure 1). We observe that the increased difficulty of the task translates both the population mean and the median to the right. In this case, we expect a statistical test to reject the null hypothesis, no matter whether it tests the population mean, the median, or the overall distribution shape.
Nevertheless, the increased difficulty of the task does not simply translate the distribution to the right. The shape and scale of the distribution also change — the variance increases, and the mean and median do not increase by the same amount. This poses a problem for ART’s alignment procedure because the more extreme values of a random sample that appear near the further right of the wider distribution (depicted in green in Figure 6) will have a significant impact on the calculation of the within-cell mean. This will lead to the exaggeration of all ranks within this cell.
Unfortunately, an additional issue arises regarding the interpretation of interactions, which we discus in depth below.
Interaction interpretation problems
Let us take a different dataset from a fictional experiment (within-participants design with \(n = 24\)) that evaluates the performance of two techniques (Tech A and Tech B) under two task difficulty levels (easy vs. hard). The experiment, for example, could test a mobile typing task, where the levels of difficulty correspond to texts of different lengths (short vs. long) under two typing techniques (with vs. without auto-completion). We assume that the researchers measure two dependent variables: task-completion time and perceived performance, which is measured through a five-level ordinal scale (from “very quick” to “very slow”). In this example, the main effects of task difficulty and technique are large. What is less clear, however, is whether there is an interaction between the two factors.
The problem of different scales. Figure 7 visualizes the means for each combination of the levels of the factors and highlights the possible interactions. Let us first concentrate on the first two plots that present results for the time measure. The trends in the left plot indicate an interaction effect, since the two lines seem to diverge as the task difficulty increases.
But how meaningful is this interpretation of interaction? Time measurements are often taken from distributions of different scales, that is, large effects are harder to observe in quick tasks than in slow ones. For example, performance differences in sprint races are in the range of milli- or centiseconds, while differences in long-distance races can be in the range of several seconds or minutes. So if we compare the time performance of any two groups of people (e.g., 14- vs. 12-year-old children), we will always find that absolute differences grow as race distance increases. However, such trends do not necessarily reveal any real interactions, because they are simply due to observations at different time scales. This issue is not specific to running races. Wagenmakers and Brown (2007) show that the standard deviation of response times increases linearly with their mean. This relationship is depicted in Figure 1 and Figure 6, where the mean and the spread of the time distributions grow together as task difficulty increases.
In our example in Figure 7, each task (typing a piece of text) is a sequence of elementary tasks (typing a word). We thus expect both means and standard deviations to grow as a function of the number of words in the text. In this case, meaningful interaction effects (e.g., Tech B suffers from more intense fatigue effects in longer texts) will be manifested as growing time ratios (i.e., as proportional differences) — not as growing absolute time differences. An easy way to visually assess the presence of such interactions is to show time on a logarithmic scale, as shown in Figure 7 (middle). Notice that the lines in the plot are now almost parallel, suggesting no interaction effect.
Removable interactions. The concept of removable interactions, that is, interactions that disappear after applying a monotonic non-linear transformation, was introduced by Loftus (1978). Over three decades later, Wagenmakers et al. (2012) revisited this work and found that psychology researchers are largely unaware of the concept, drawing incorrect conclusions about psychological effects on the basis of meaningless interactions. This issue also extends to data collected from questionnaires. The right plot in Figure 7 shows results for perceived performance. Again, the line trends suggest an interaction effect. Unfortunately, the scale is ordinal, which means that distances between the five levels of the scale may not be perceived as equal by people. Furthermore, the scale is bounded, so the reason that the two lines are not parallel might be simply due to the absence of additional levels beyond the extreme “very slow” ranking. Concluding that there is a meaningful interaction here could be incorrect. Liddell and Kruschke (2018) extensively discuss how ordinal scales deform interactions.
Formal testing. We now formally test the above interactions by using ANOVA with different transformation methods. Below, we present the p-value returned by each method for task-completion time:
| PAR | LOG | ART | RNK | INT |
|---|---|---|---|---|
| \(.023\) | \(.67\) | \(.00073\) | \(.66\) | \(.67\) |
We observe that RNK and INT lead to p-values very close to the p-value of LOG, which suggests a similar interpretation of interaction effects. In contrast, ART returns a very low p-value (lower than the p-value of the regular ANOVA), showing that the method is extremely sensitive to scale effects.
We also test the interaction effect on the ordinal dependent variable:
| PAR | ART | RNK | INT | ATS |
|---|---|---|---|---|
| \(.0020\) | \(.00075\) | \(.0067\) | \(.0037\) | \(.0081\) |
Notice that we omit the log-transformation method (LOG), as it is not relevant here. We conduct instead an analysis with the nonparametric ATS method (Brunner and Puri 2001) as implemented in the R package nparLD (Noguchi et al. 2012). All p-values are low, suggesting that an interaction effect exists. However, if we conduct a more appropriate analysis using an ordered probit model (Bürkner and Vuorre 2019; Christensen 2023), we will reach the conclusion that there is no supportive evidence for such an effect (check our analysis in the supplementary material). We return to these models in later sections. An important observation here is that nonparametric procedures are not the answer to such problems.
Approach
Our analysis shows that inference errors are not simply due to the lack of robustness of a statistical procedure. In the case of interaction effects, errors will also emerge when the procedure makes inference on the wrong scale. As Wagenmakers et al. (2012) explain, “the dependent variable reflects merely the output of a latent psychological process”, and unfortunately, “in most experimental paradigms the exact relationship between unobserved process and observed behavior is unknown …”
Ideally, a statistical procedure should lead to conclusions that capture the true effects on the latent variable of interest. But as we discussed above, this might not be the case for the rank transformation methods that we study. For example, all four methods (PAR, RNK, ART, and INT) suggest that task difficulty interacts with use of technique on perceived performance because they disregard the fact that the observed data are simply projections on a discrete ordinal scale. Our goal is to understand how ART and the other methods deal with such problems.

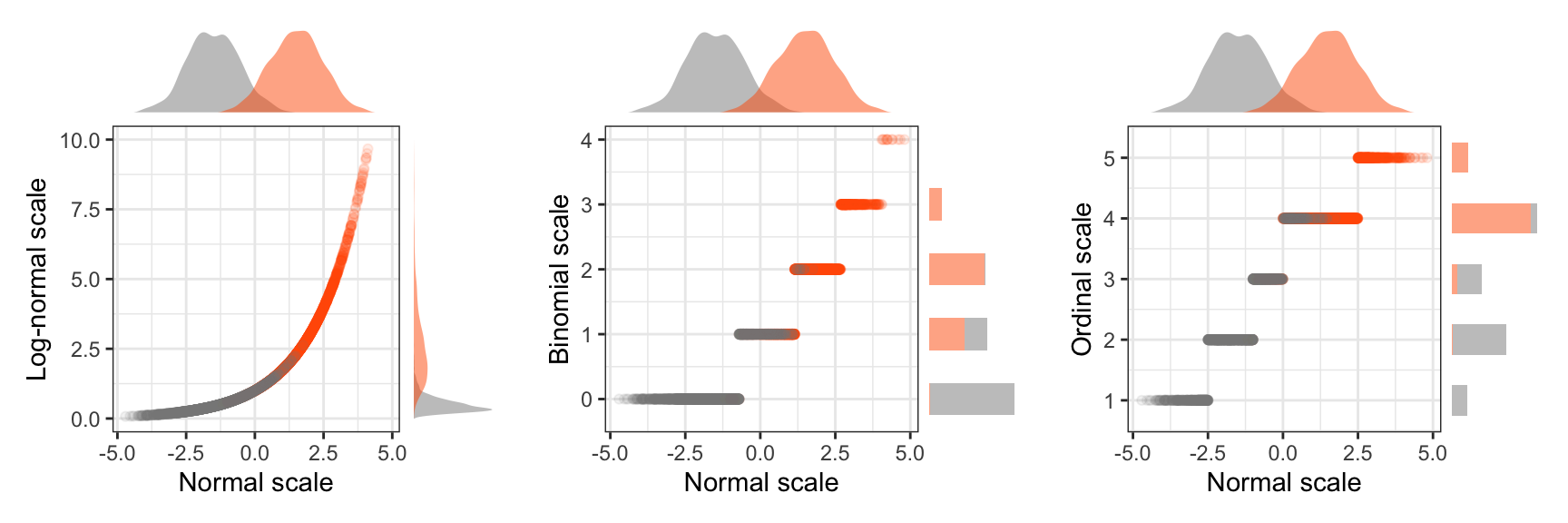

Latent variables. We assume that there is a latent variable \(Y\) of interest that is different from the variable we observe. For example, a latent variable may represent the performance potential of a population of people, their working memory capacity, their perceived utility of a new technology, or their quality of life. For convenience, we assume that the latent variable is continuous and normally distributed. This assumption is common in latent variable modeling, e.g., in diffusion-decision models that predict response time and error in two-choice decision tasks (Ratcliff and McKoon 2008), and ordinal models (Liddell and Kruschke 2018).
Observed variables. Then, all dependent variables \(Y'\) that we observe are derived from this latent variable through a monotonic transformation, thus \(Y' = \mathcal{T}(Y)\), where \(\mathcal{T}(y_1) \le \mathcal{T}(y_2)\) if and only if \(y_1 \le y_2\). A transformation for example occurs when study participants perform a selection task or repond to a Likert-scale item through a questionnaire. Figure 8 shows how we transform normal distributions to log-normal, binomial, and ordinal scales.
To transform the latent variable to a ratio scale (e.g., a log-normal and binomial scale), we adopt the distribution conversion approach of faux v1.2.1 (DeBruine 2023), an R package for experimental simulations. We first derive the cumulative density distribution of the latent variable. We then use the inverse quantile function of the target distribution to derive the observed variable. For example, in Figure 8 (left), where we transform the latent variable to a log-normal scale with parameters \(\mu = 0\) and \(\sigma = 1\), we use the following R function:
norm2lnorm <- function(x, meanlog = 0, sdlog = 1, mu = mean(x), sd = sd(x), ...) {
p <- pnorm(x, mu, sd)
qlnorm(p, meanlog, sdlog, ...)
}For the binomial scale of Figure 8 (left), we use instead the inverse quantile function of the binomial distribution qbinom(p,size,prob) with parameters size = 10 and prob = .1, which respectively represent the number of Bernoulli trials and their success probability.
To transform the latent variable to an ordinal scale, we implement an ordered-probit model, as explained by Liddell and Kruschke (2018). According to this model, we discretize the latent variable with thresholds that determine the ordinal levels of interest. For our example in Figure 8 (right), we use as threshold the values \((-2.5, -1, 0, 2.5)\), defining an ordinal scale of five levels. Observe that these thresholds are not equidistant.
Interpreting effects. Our approach allows us to simulate main and interaction effects on the latent variable \(Y\) and observe them on the transformed variable \(Y' = \mathcal{T}(Y)\). As discussed earlier, how to infer main effects is straightforward since we only study monotonic transformations here. Specifically, if we observe a main effect on the observed variable \(Y'\), we can also conclude that there is a main effect on the latent variable \(Y\). Notice, however, that if the observed variable is bounded or takes only discrete values, a main effect on \(Y\) may not be observable.
The interpretation of interactions is more challenging. Depending on how the statistical procedure we use deals with different scales, observations of interactions among two or more factors on the transformed variable \(Y'\) may lead to incorrect conclusions about the presence of interactions on the latent space of \(Y\). Such errors emerge when the main effect of all interacting factors on the latent (or observed) variable is non-zero. In our analysis, we count them as statistical inference errors (Type I and II errors). Nevertheless, we try to distinguish them from typical inference errors, for which interaction interpretation issues do not come into place.
4 Experimental method
We can now detail our experimental method. We evaluate the standard parametric approach (PAR) and the three rank-transformation methods (RNK, INT, and ART) that we introduced earlier. We conduct a series of Monte Carlo experiments that assess their performance under a variety of experimental configurations:

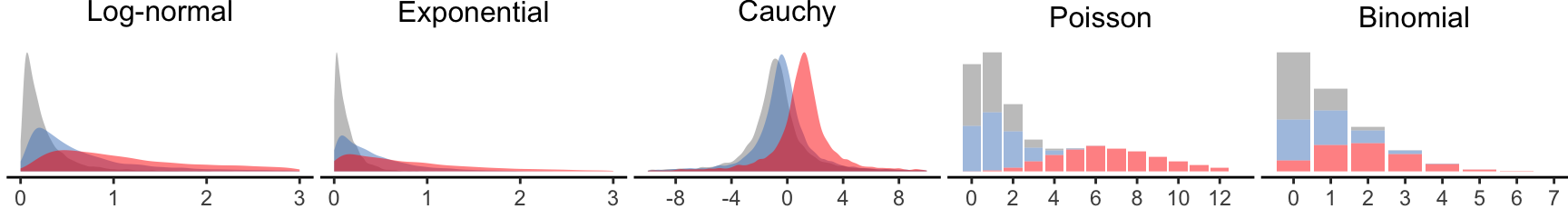

We evaluate ratio and ordinal data. For ratio data, we examine four representative continuous distributions (normal, log-normal, exponential, and Cauchy distribution) and two discrete distributions (Poisson and binomial distribution). For ordinal data, we examine distributions for 5-level, 7-level, and 11-level Likert item responses.
We present results for five experimental designs. To simplify our presentation, we start with a 4 \(\times\) 3 repeated-measures factorial design. We then show how our conclusions generalize to four additional designs: (i) a 2 \(\times\) 3 between-subjects design; (ii) a 2 \(\times\) 4 mixed design, with a between-subjects factor and a repeated-measures factor; (iii) a 2 \(\times\) 2 \(\times\) 2 repeated-measures design, and (iv) a 3 \(\times\) 3 \(\times\) 3 repeated-measures design.
We evaluate three sample sizes, \(n=10\), \(n=20\), and \(n=30\), where \(n\) represents the cell size in an experimental design. For within-subjects designs where all factors are treated as repeated measures, \(n\) coincides with the number \(N\) of subjects (or commonly human participants in HCI research). In contrast, for a 2 \(\times\) 3 between-subjects design, if the cell size is \(n = 20\), then the number of subjects is \(N = 120\).

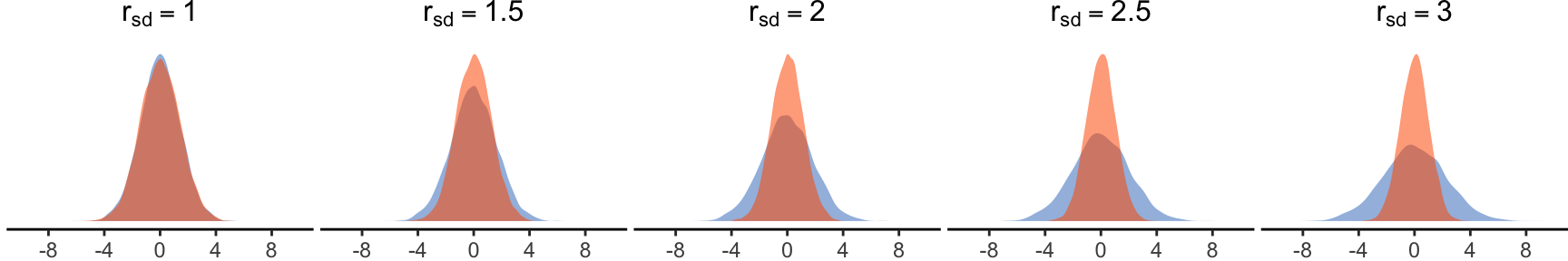

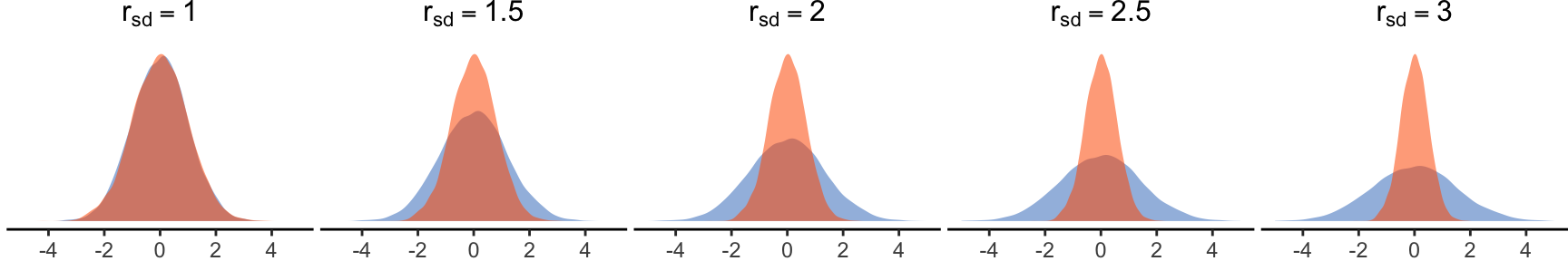

We test the robustness of the methods under unequal variances.
In addition to Type I error rates, we compare the statistical power of the methods and also evaluate the quality of their effect size estimates.
We assess the above measures for both main and interaction effects and examine how growing effects on one or two factors affect the Type I error rate on other factors and their interactions.
Previous evaluations of rank transformation methods (Beasley, Erickson, and Allison 2009; Lüpsen 2018) have also tested unbalanced designs, where the cell size is not constant across all levels of a factor. When combined with unequal variances, unbalanced designs are often problematic for both parametric procedures (Blanca et al. 2018) and rank transformation methods (Beasley, Erickson, and Allison 2009; Lüpsen 2018). As we mentioned earlier, we do not evaluate unbalanced designs here. However, we provide additional experimental results on missing data in the appendix.
Statistical modeling
To model the latent variable \(Y\), we use a two-way (two factors) or a three-way (three factors) mixed-effects model. For simplicity, we explain here the model for two factors. Its extension to three factors is straightforward. The model has the following form:
\[ y_{ijk} = \mu + s_k + a_1 x_{1i} + a_2 x_{2j} + a_{12} x_{1i} x_{2j} + \epsilon_{ijk} \tag{2}\]
\(\mu\) is the grand mean
\(s_k\) is the random intercept effect of the k-th subject, where \(k = 1..n\)
\(x_{1i}\) is a numerical encoding of the i-th level of factor \(X_1\), where \(i = 1..m_1\)
\(x_{2j}\) is a numerical encoding of the j-th level of factor \(X_2\), where \(j = 1..m_2\)
\(a_1\), \(a_2\), and \(a_{12}\) express the magnitude of main and interaction effects
\(\epsilon_{ijk}\) is the experimental error effect
To encode the levels of the two factors \(x_{1i} \in X_1\) and \(x_{2j} \in X_2\) we proceed as follows:
We normalize the distance between their first and their second levels such that \(x_{12} - x_{11} = 1\) and \(x_{22} - x_{21} = 1\). This approach enables us to conveniently control for the main and interaction effects by simply varying the parameters \(a_1\), \(a_2\), and \(a_{12}\).
For the remaining levels, we randomly sample from a uniform distribution that spans the range between these two extreme levels, i.e., between \(x_{11}\) and \(x_{12}\) for \(X_1\), and between \(x_{21}\) and \(x_{22}\) for \(X_2\). This approach allows us to generate and evaluate a substantial variety of configurations, each representing different relative effects between levels.
We require all levels to sum up to 0, or \(\sum\limits_{i=1}^{m_1} x_{1i} = 0\) and \(\sum\limits_{j=1}^{m_2} x_{2j} = 0\), which ensures that the grand mean is \(\mu\).
For example, we can encode a factor with four levels as \(\{-.6, .4, .1, .1\}\) or as \(\{-.5, .5, .3, -.3\}\).
While random slope effects can have an impact on real experimental data (Barr et al. 2013), we do not consider them here for two main reasons: (1) to be consistent with previous evaluations of the ART procedure (Elkin et al. 2021); and (2) because mixed-effects procedures with random slope effects are computationally demanding, adding strain to simulation resources. However, there is no good reason to believe that adding random slope effects would impact our findings and conclusions.
Population control and distribution conversions
To simplify our simulations, we fix the following population parameters: \(\mu = 0\), \(\sigma = 1\), and \(\sigma_s = 1\). We then control the magnitude of effects by varying \(a_1\), \(a_2\), and, for some experiments \(a_{12}\). Figure 9 presents the range of values that we test for \(a_1\) and \(a_2\). We also visualize their effects on the latent variable for factors with two, three, and four categorical levels.
We follow the approach of DeBruine and Barr (2021) and use the R package faux v1.2.1 (DeBruine 2023) to simulate data for our mixed-effects models. We assume that the distributions of random intercepts and errors are normal, or \(s_k \sim N(0,\sigma_s)\) and \(\epsilon_{ijk} \sim N(0,\sigma)\). To simulate the observed variable \(Y'\), we then transform the response values \(y_{ijk}\) as described in Section 3. A key advantage of this method is that we can generate responses for any distribution, while we control effects on the latent variable in the exact same way.
Implementation of rank transformation methods
For the aligned rank transformation (ART), we use the R implementation of ARTool v0.11.1 (Kay et al. 2021). For the pure rank transformation (RNK), we use R’s rank() function. We use the Rankit formulation (Bliss, Greenwood, and White 1956) for the inverse normal transformation (INT), as explained earlier. Unless explicitly mentioned otherwise, we use the formula Y' ~ X1*X2 + (1|S) with R’s lmer function, except for the between-subjects design where we use the formula Y' ~ X1*X2 + Error(S) with R’s aov function.
Evaluation measures
Significance tests have two types of errors. Type I errors, or false positives, are mistaken rejections of the null hypothesis. Type II errors, of false negatives, are failures to reject a null hypothesis that is actually true. In our illustrative example in Figure 1, a Type I error is finding that there is an effect of the choice of the technique on time performance. A Type II error, in turn, is finding that the task difficulty has no effect on time performance.
Statistical significance testing requires setting a significance threshold known as significance or \(\alpha\) (alpha) level, with typical values \(\alpha = .05\) and \(\alpha = .01\). The Type I error rate of a well-behaved significance test should be close to this nominal alpha level. An error rate clearly above this level suggests that the significance test is too liberal, while an error rate clearly below this level suggests that the test is too conservative. Four of our experiments specifically assess the Type I error rate of the methods. We test two significance levels: \(\alpha = .05\) and \(\alpha = .01\). For brevity, we only report results for \(\alpha = .05\) in the main paper and include additional results in our supplementary material.
We do not directly evaluate Type II errors. Instead, we report on statistical power defined as \(Power = 1 - \beta\), where \(\beta\) is the rate of Type II errors. Significance tests do not provide any power guarantees. However, we can compare the power of different methods to evaluate their relative performance. In addition to power, we assess effect size estimates, where we use as ground truth the estimates of a parametric ANOVA conducted on the latent variable \(Y\). While partial \(\eta^2\) is the most commonly used effect size measure, we chose to base our analysis on Cohen’s \(f\), as its expected value is proportional to the real magnitude of effect. However, \(\eta^2\) can be directly derived from Cohen’s \(f\) as follows:
\[ \eta^2 = \frac{f^2}{1 + f^2} \tag{3}\]
As we explained earlier, interaction effects are deformed when we transform the latent variable \(Y\) to obtain the observed responses. Such transformations also affect the Type I error rates and power that we observe. Here, we are interested in evaluating these measures with respect to the effects we apply to the latent variable \(Y\). We make this distinction whenever it is relevant in our analysis.
Hardware platform and iterations
Our experimental R code is available in our supplementary material. We ran our experiments separately in a cluster of 8 machines Dell R640 Intel Xeon Silver 4112 2.6GHz with 4 cores and 64 GB memory. Our R code was parallelized to use all four cores of each machine. Some experiments took a few hours to complete, while others took several days.
To estimate the power and Type I error rates of the four methods with enough precision, we ran \(5000\) iterations for each population configuration and each sample size.
5 Results
Each experiment concentrated on a unique combination of distributions, experimental designs, and evaluation measures. Consequently, we organize our results into several subsections, addressing both main and interaction effects.
Type I error rates in ratio scales
Our first experiments evaluate Type I error rates for ratio scales. We test a 4 \(\times\) 3 repeated-measures design, where we refer to the 4-level factor as \(X_1\) and the 3-level factor as \(X_2\). For the observed response variable \(Y' = \mathcal{T}(Y)\), we evaluate transformations to four continuous and two discrete distributions:
No transformation, or \(Y' = Y\). Distributions are normal with a grand mean \(\mu = 0\) (e.g., see Figure 9).
Log-normal distribution \(LogN(\mu, \sigma)\) with global parameters \(\mu = 0\) and \(\sigma = 1\). As discussed in the introduction, the log-normal distribution is a good model for various measures bounded by zero, such as task-completion times.
Exponential distribution \(Exp(\lambda)\) with a global parameter \(\lambda = 2\). The exponential distribution naturally emerges when describing the time elapsed between events. For example, we could use it to model the time a random person spends with a public display, or the waiting time before a new person approaches to interact with the display, when the average waiting time is \(\frac{1}{\lambda}\).
Cauchy distribution \(Cauchy(x_0,\gamma)\) with global parameters \(x_0 = 0\) and \(\gamma = 1\). The Cauchy distribution is the distribution of the ratio of two independent normally distributed random variables. It rarely emerges in practice. However, it is commonly used in statistics to test the robustness of statistical procedures because both its mean and variance are undefined. As we discussed earlier, past evaluations of ART (Mansouri and Chang 1995; Elkin et al. 2021) show that the method fails under the Cauchy distribution.
Poisson distribution \(Pois(\lambda)\) with a single parameter \(\lambda = 3\). It expresses the probability of a given number of events in a fixed interval of time. For example, we could use it to model the number of people who interact with a public display in an hour, when the average rate is \(\lambda = 3\) people per hour.
Binomial distribution \(B(k,p)\) with parameters \(k = 10\) and \(p=.1\). It frequently appears in HCI research, as it can model the number of successes and failures in a series of experimental tasks. For example, we could use it to model the number of errors that participants make in a series of \(k = 10\) repetitions of a memorization task, when the average error rate is \(10\%\), thus the average error probability is \(p=.1\).
Specifically for the log-normal and binomial distributions, we present results for a wider range of their parameters in the appendix.
Main effects. Figure 10 presents Type I error rates for the main effect of \(X_2\) as the magnitude of the main effect of \(X_1\) increases. The results show a very good behavior for RNK and INT across all distributions. The regular parametric ANOVA (PAR) keeps error rates below \(5\%\). However, error rates become extremely low for some distributions, suggesting a loss in statistical power. We confirm previous results that ART fails to control the Type I error rate under the Cauchy distribution (Mansouri and Chang 1995; Elkin et al. 2021). However, we also show that the method can be problematic with other non-normal distributions. As the main effect on the first factor \(X_1\) increases, Type I errors on the second factor \(X_2\) grow and reach high levels. This pattern is particularly pronounced under the log-normal distribution. We also observe that for the binomial distribution, error rates are high (\(\approx 11\%\) for \(n = 20\)) even when effects on \(X_1\) are zero. In addition, error rates further grow when the sample size increases.
Contrasts. The same problems appear when we run ART’s procedure for contrasts (Elkin et al. 2021). Figure 11 shows our results, where we report average error rates for three pairwise comparisons (since \(X_2\) has three levels). In the rest of the paper, we only show results for overall effects, since results for contrasts exhibit the same patterns.
Interaction effects. Figure 12 presents Type I error rates for the interaction effect \(X_1 \times X_2\), when the main effect on \(X_2\) is zero while the main effect on \(X_1\) increases. Overall, we observe the same trends as for main effects. Again, ART fails in similar ways, although its error rates are now slightly lower.
Finally, Figure 13 presents our results when the main effects on the two factors increase in parallel. Error rates become exceptionally high in some cases, growing up to \(100\%\).
However, these results require special attention since interaction interpretation issues come now into place. Let us examine the performance of each method:
PAR. Error rates are high for all non-normal distributions, and become even higher when the sample size increases. As we explained in Section 3, the parametric method cannot deal with scale differences that emerge when effects are transformed in a non-linear fashion. If we interpreted interactions based on absolute mean differences, disregarding their different scales (i.e., if we decided that the trend in Figure 7 (left) is indeed a valid interaction effect), we would not observe these high error rates.
RNK. Error rates explode when both main effects exceed a certain level (e.g., when \(a_1, a_2 \ge 4\) and \(n = 20\)). As shown in Figure 5, the problem is due to the way the rank transformation deforms interactions.
INT. The method exhibits a better behavior than RNK. Errors start again increasing for all distributions, but not until main effects become significantly large. An exception is the binomial distribution, for which the error rates of INT and RNK are similar. We also observe that for continuous distributions, both INT and RNK are scale invariant, since their performance is not affected by the choice of scale.
ART. It keeps error rates at correct levels as long as population distributions are normal. For all other distributions, its error rates grow rapidly as effect sizes increase. We distinguish between two sources of errors: (i) lack of statistical robustness as observed in our previous tests; and (ii) interaction interpretation issues (see Section 3). Our results confirm that ART is not scale invariant. On the contrary, it is extremely sensitive to the scale of the observed data.
Type I error rates in ordinal scales
Our second experiment evaluates Type I error rates for ordinal scales. We test again a \(4 \times 3\) repeated-measures design. We focus on individual Likert items levels and implement an ordered-probit method (Liddell and Kruschke 2018) to discretize the latent variable \(Y\) into 5, 7, or 11 ordinal levels. To derive the discretization thresholds, we first consider the range \([-2SD, 2SD]\) , where \(SD\) is the overall standard deviation of the responses \(y_{ijk}\). We then divide this range into 5, 7, or 11 intervals, following two different strategies: (i) setting thresholds to be equidistant; or (ii) considering flexible thresholds, randomly drawing their position in the above range. Figure 14 presents examples of equidistant and flexible thresholds for a 5-level scale when the magnitude of main effect of \(X_1\) is either \(a_1 = 2\) or \(a_1 = 8\), while all other effects are zero.
Main effects. Figure 15 present Type I errors for \(X_2\)’s main effect, as we vary \(X_1\)’s magnitude of main effect. Our results indicate that PAR, RNK, and INT consistently maintain error rates close to \(5\%\) across all tested ordinal scales. In contrast, ART exhibits a significant inflation of error rates, although this issue becomes less severe when the number of levels increases. Notably, error rates are more pronounced for flexible thresholds and tend to increase with sample size.
Interaction effects. Figure 16 displays error rates for the interaction \(X_1 \times X_2\) with a single main effect applied to \(X_1\). The observed patterns align with our previous findings; ART consistently inflates error rates, although to a lesser extent now.
Finally, Figure 17 presents our results when main effects are applied to both factors. None of the methods successfully maintains low error rates across all conditions. Intriguingly, we note that ART consistently performs worse than PAR. INT performs worse than ART and PAR in one specific case (\(a_2, a_2 = 8\) in a scale with 11 equidistant levels), but overall, it exhibits a better behavior than all other methods.
Type I errors across experimental designs
Our third experiment investigates the generalizability of the aforementioned results to other experimental designs involving two or three factors. We assess five out of the six ratio scales examined earlier. We exclude the Cauchy distribution and replace it by a 5-level ordinal scale with flexible thresholds.
Main effects. Figure 18 illustrates Type I errors for the main effect of \(X_2\) while varying the magnitude of the main effect of \(X_1\), with a focus on \(n = 20\). Across all cases, RNK and INT consistently maintain error rates close to \(5\%\). PAR’s error rate remains overall close to \(5\%\) but reaches notably low levels for specific combinations of designs (\(2 \times 2 \times 2\) and \(3 \times 3 \times 3\) repeated-measures) and distributions (log-normal and exponential). In contrast, ART inflates error rates for all non-normal distributions, with discrepancies across different designs. We observe that ART is particularly problematic in discrete distributions when applied to the \(2 \times 2 \times 2\) and \(3 \times 3 \times 3\) designs.
We provide additional results for the between-subjects design in Figure 19, where we vary the effect of \(X_2\) and measure Type I error rates on \(X_1\). ART’s error rates for the three discrete distributions appear higher than those observed in Figure 18, indicating a potential dependence on the number of levels of the factors. Again, we observe a consistent trend where error rates increase with the sample size.
Interaction effects. Figure 20 displays Type I error rates for the interaction effect \(X_1 \times X_2\) while varying the effect of \(X_1\) (\(n = 20\)). We observe consistent trends in line with our previous findings. For additional insights, we direct readers to our raw experimental data, which demonstrate that these trends persist across other interaction terms, namely \(X_1 \times X_3\), \(X_2 \times X_3\), and \(X_1 \times X_2 \times X_3\), within the two 3-factor designs.
Our results in Figure 21 confirm that all methods exhibit varying degrees of difficulty in accurately inferring interaction effects when main effects are present on all interacting factors. While PAR and ART perform well for normal distributions, their error rates escalate more rapidly across all other distributions. ART’s error rates become exceptionally low for certain designs (e.g., \(2 \times 3\) and \(2 \times 2 \times 2\)), suggesting a challenge in detecting small interaction effects when main effects are large. RNK exhibits a similar pattern for the \(2 \times 2 \times 2\) design. Notably, both methods display high error rates under ordinal and binomial scales, although these rates are lower compared to those of PAR and ART.
